Can I Customize Perforated Metal Ceilings? What’s the Process Like?
Have you ever felt frustrated because the ceilings on the market don’t match your design goals? If yes, you’re not alone. That’s why many professionals turn to metal ceiling customization.
Yes, perforated metal ceilings can be fully customized in pattern, hole size, finish, and acoustic performance—making them perfect for both design and functionality.
If you’re working on a project and wondering whether these ceilings are flexible enough for your needs, keep reading. I’ll walk you through the options and the process step-by-step.
What customization options are available for perforated metal ceilings?
Standard designs can’t always meet complex project requirements—especially in large commercial or high-end residential spaces.
With metal ceiling customization, you can control everything: hole pattern, material thickness, acoustic backing, surface treatment, and even panel shape.

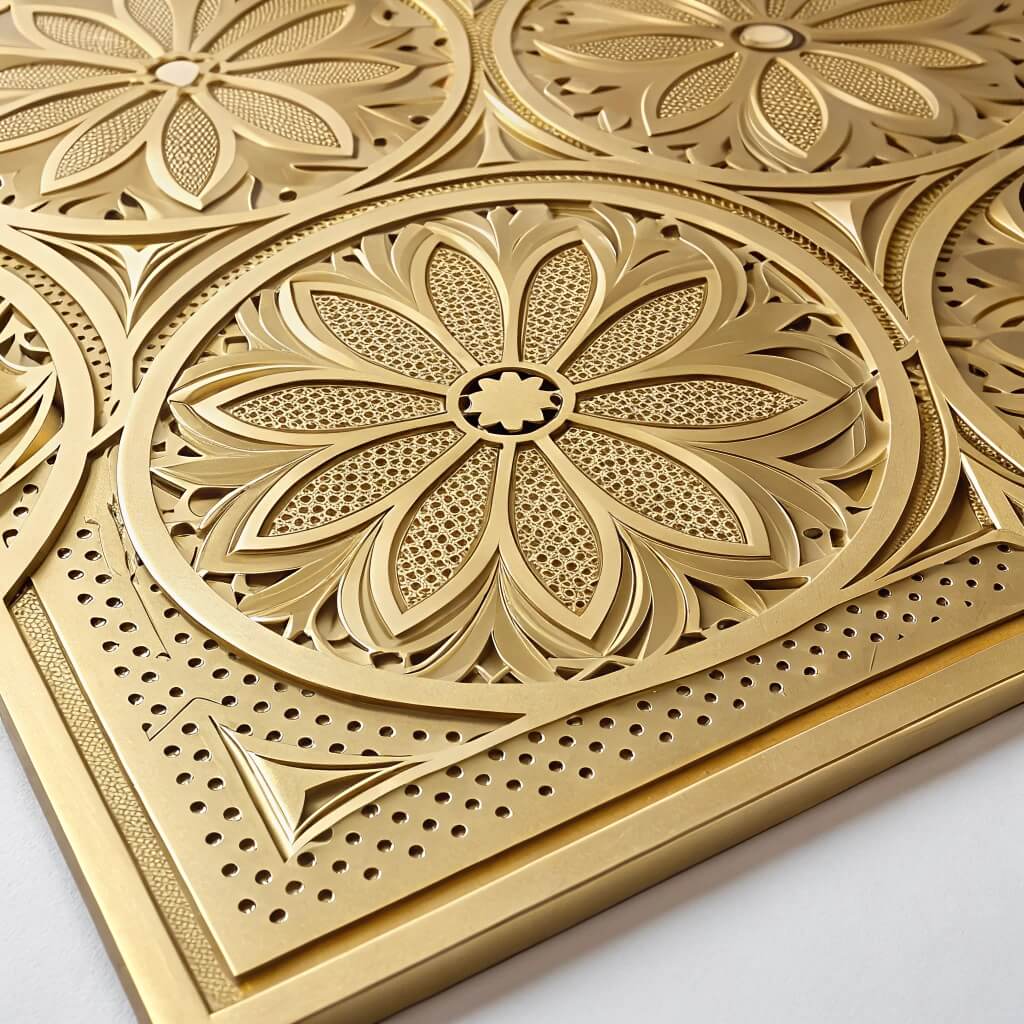

When Emily from a U.S. design firm approached me, she needed a floral-themed aluminum ceiling pattern with a gold finish. She also requested sound absorption features. We created a customized pattern and integrated acoustic ceiling panels on the back to meet both her design and acoustic needs.
Key Customizable Features
| Element | Available Options |
|---|---|
| Hole Design | Round, square, hex, linear, floral, custom-cut |
| Diameter | 0.5mm to 20mm |
| Open Area Ratio | 10% to 60%, adjustable for sound and airflow |
| Material & Finish | Powder coat, anodized, brushed, or wood grain |
| Panel Geometry | Square, rectangular, curved, modular |
| Sound Absorption | Optional acoustic fleece, mineral wool backing |
With aluminum ceiling designs, even mounting systems are flexible—you can choose from lay-in, clip-in, or hidden-hook types, depending on visual and structural requirements.
How to choose the right pattern and hole size?
Choosing the wrong perforation might ruin both the look and the function of your ceiling.
The right hole pattern depends on your acoustic goals, visual impact, and required airflow or lighting effects.

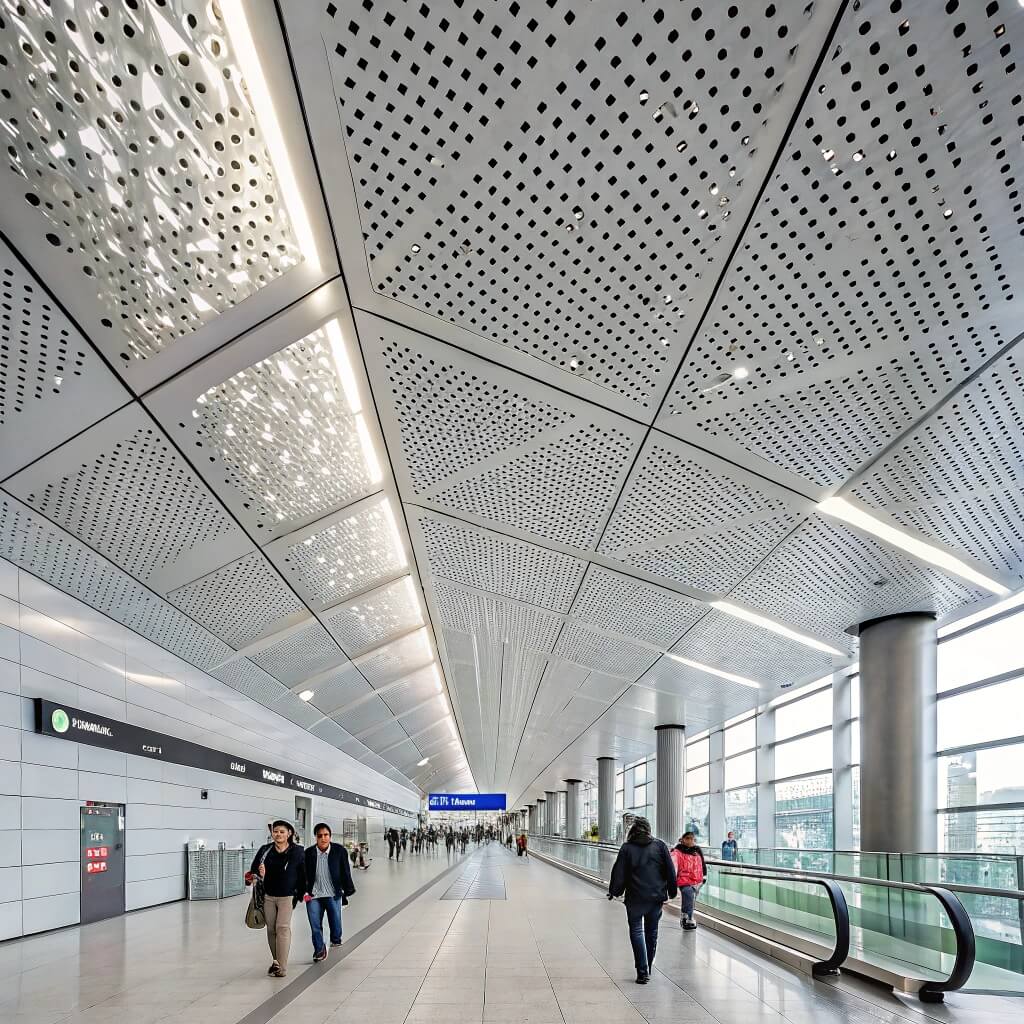

Daniel, a project contractor from Singapore, once asked me whether 5mm holes were too large for a transit hub. I recommended a denser 1.5mm pattern with 25% open area and a black acoustic lining. This combination balanced acoustic absorption and visual simplicity.
How to Decide
1. Define Performance Goals
- Design Look: Irregular or gradient patterns make a strong impression.
- Sound Control: Smaller holes, more holes = better acoustic results.
- Ventilation/Light: Use larger holes or higher open areas.
2. Match Hole Size with Material Thickness
- For thin aluminum, keep holes small to avoid bending or cracking.
- Complex designs may need a thicker substrate for clean results.
3. Review Real Samples
Ask for prototype panels with both front and back views. Look at them under real lighting and test for how they handle sound.
What is the typical production timeline for custom orders?
Worried that custom means slow? That’s not always true.
A typical custom metal ceiling order takes 2–5 weeks depending on the size, finish, and whether you require acoustic treatments.
We recently produced 500m2 of perforated acoustic ceiling panels with a brushed silver finish in 3.5 weeks. The customer needed a tailored pattern and integrated soundproofing, which we handled without delays.
Sample Production Timeline
| Phase | Time Required |
|---|---|
| Design Consultation | 2–5 days |
| Sample Creation | 5–7 days |
| Tooling Setup | 3–5 days |
| Main Production | 7–15 days |
| Surface Finish & Coating | 3–7 days |
| Final Inspection & Packing | 2–3 days |
For urgent orders, we offer express production lanes when possible. Just let us know your deadline upfront.
Do manufacturers offer design support for custom ceilings?
Worried you don’t have the tools to design your ceiling layout? We’ve got your back.
Yes, most aluminum ceiling manufacturers now provide free design support—especially when it comes to CAD layouts, pattern planning, and acoustic simulations.
A great example is when Emily sent me a hand sketch of a concept. She had no CAD file. We translated it into a precise aluminum ceiling design with varied perforation zones. The process included 3D modeling, open area simulation, and a sample panel for review.
Design Support Services We Offer
CAD and Layout Help
- Convert hand sketches or PDFs to DWG format
- Plan panel joints and mounting systems
- Ensure the design meets acoustic or airflow targets
Visual and Acoustic Simulation
- Generate 3D ceiling renders
- Run basic reverberation analysis
- Adjust hole patterns for better noise control
Sampling and Prototyping
We always suggest producing one test panel before going into mass production. It helps clients assess pattern scale, texture, and installation ease.
Conclusion
With today’s technology, metal ceiling customization is not just possible—it’s practical. From hole patterns to acoustic backing, you can create aluminum ceiling designs that perform and inspire. Start with a sketch, and let us help you build the rest.
